Two-Story Garage ADU. Vilas Neighborhood.

700 sq ft ADU Size
5 months Start to CO
46×24′ Build Footprint
Madison, WI Location
The Starting Point

Garage space and rental income. A specific goal on a constrained lot.

The clients came in with a clear objective: add garage space to a property that had none, and build a rental unit above it to generate long-term income. Straightforward concept. Real site complexity. The plan follows the G-720 garage ADU model. More on garage ADUs.

They were being thorough. Proposals out to multiple builders, comparing pricing before committing. We understand that — it’s the right move on a project of this scale. Our process delivered concrete, detailed pricing within a day of the initial consultation.

Then they waited on the other builders.

“If getting a number took two months and still produced a wide range with no structure behind it — the project itself would be no different.”

Over the following two months, one builder in particular went quiet. Follow-ups. Delays. No real numbers. When a figure finally came back, it was a wide cost range without guarantees or confidence behind it. High on price. Low on clarity.

The clients recognized what that experience was telling them and moved forward with Boundless Tiny Homes.

Two-story garage ADU in late-stage construction — dark charcoal board-and-batten siding and open garage bay, Henry Vilas neighborhood, Madison WI
Exterior siding nearly complete — dark board-and-batten siding with the garage bay below and ADU above

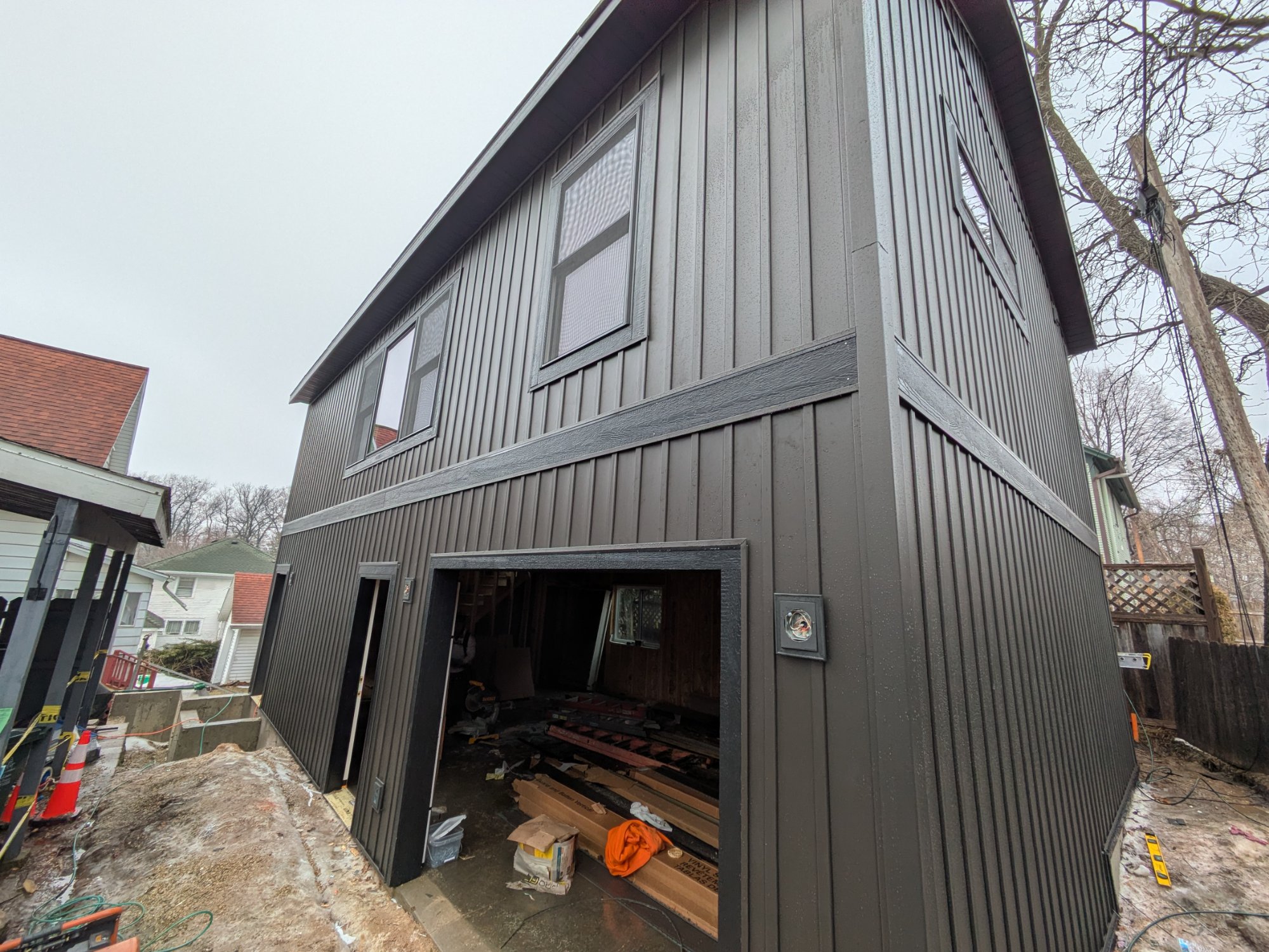

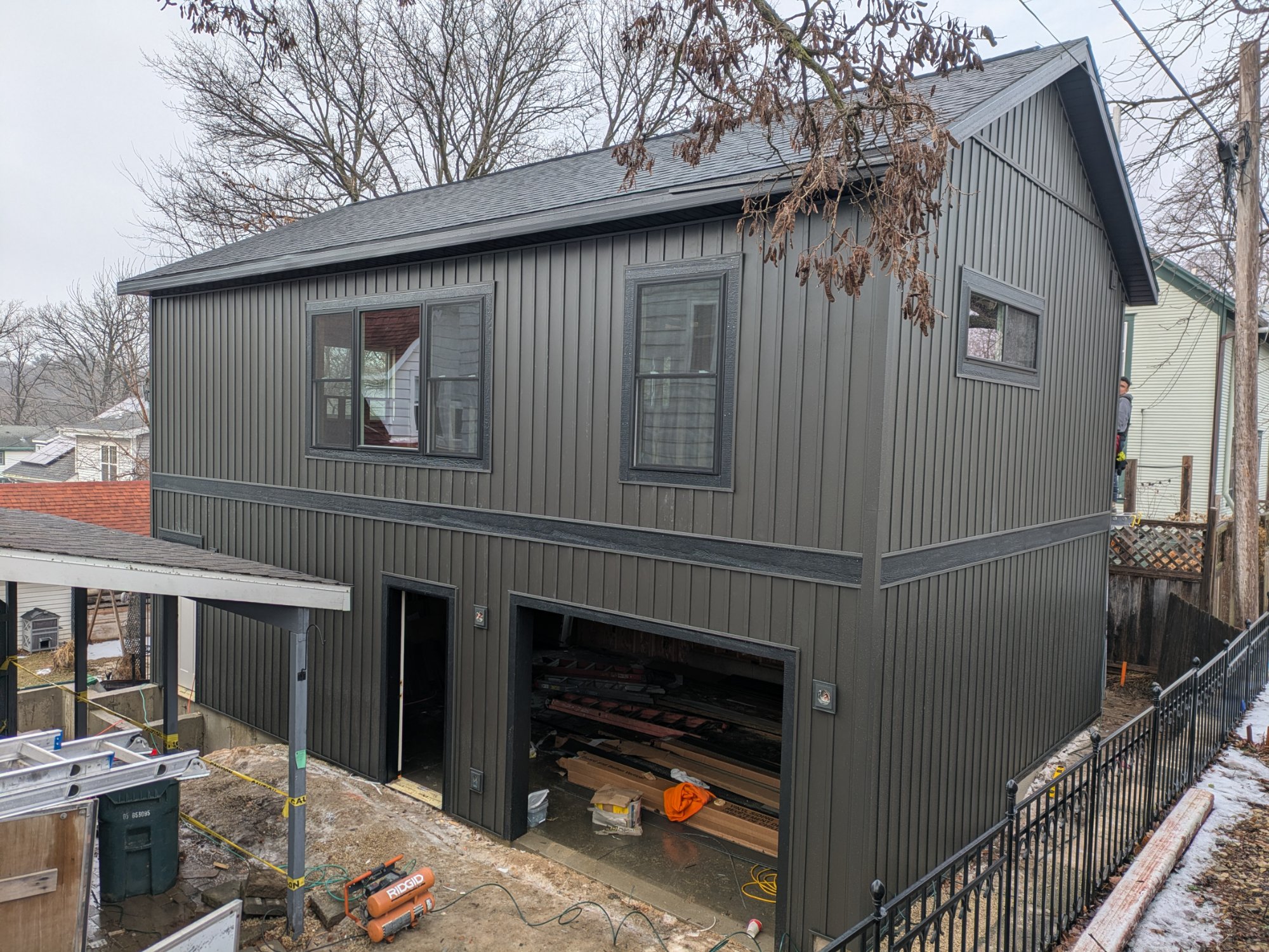

Two-story garage ADU exterior with dark board-and-batten siding and upper-level casement windows before door installation, Madison WI
Front-quarter view during exterior trim-out — dark vertical siding and upper-level ADU windows

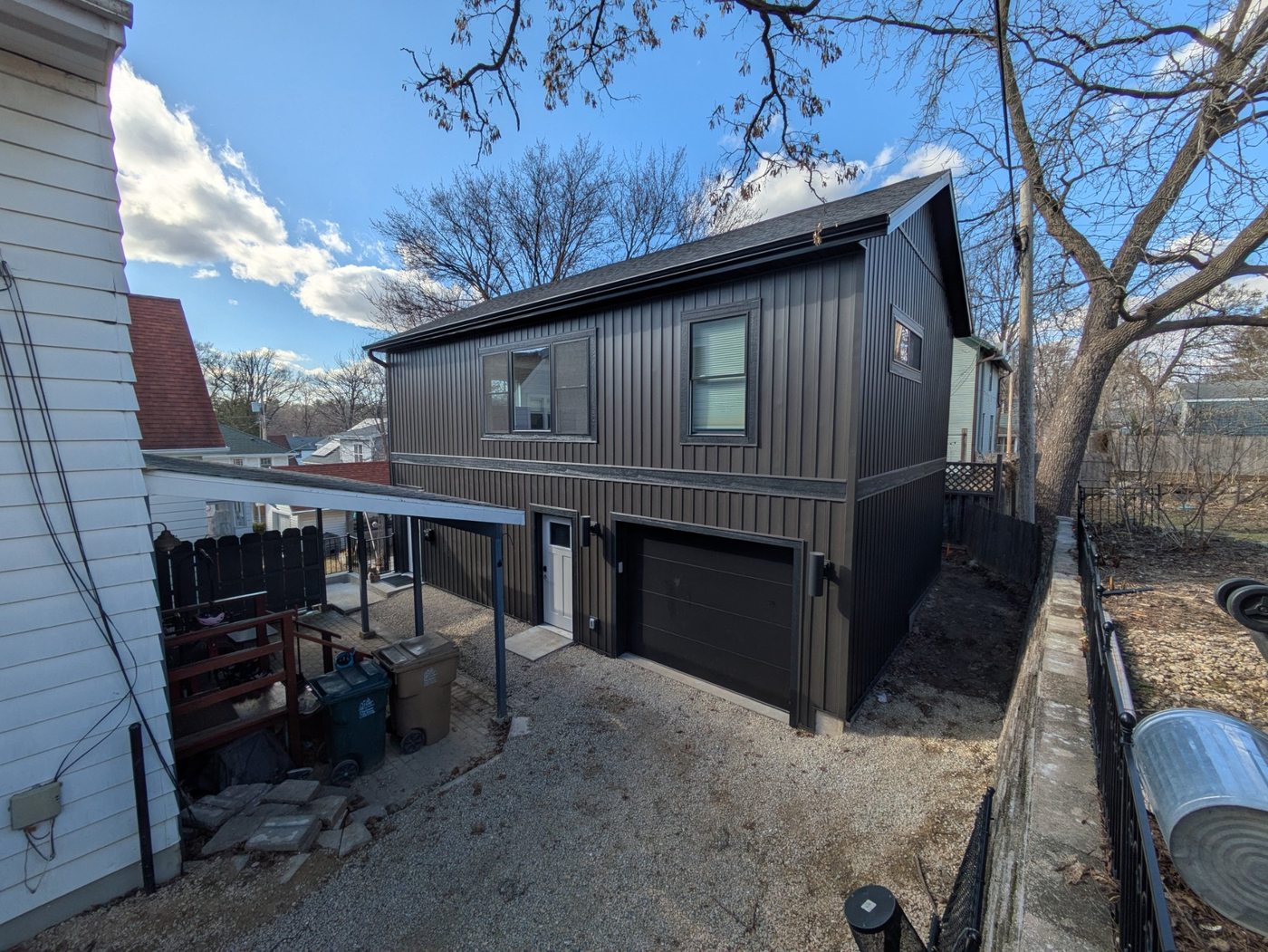

Completed two-story garage ADU with dark charcoal board-and-batten siding, matte-black garage door, and white ADU entry door, Henry Vilas neighborhood, Madison WI
Completed exterior — full view from the driveway showing the garage bay, white ADU entry door, and retaining wall

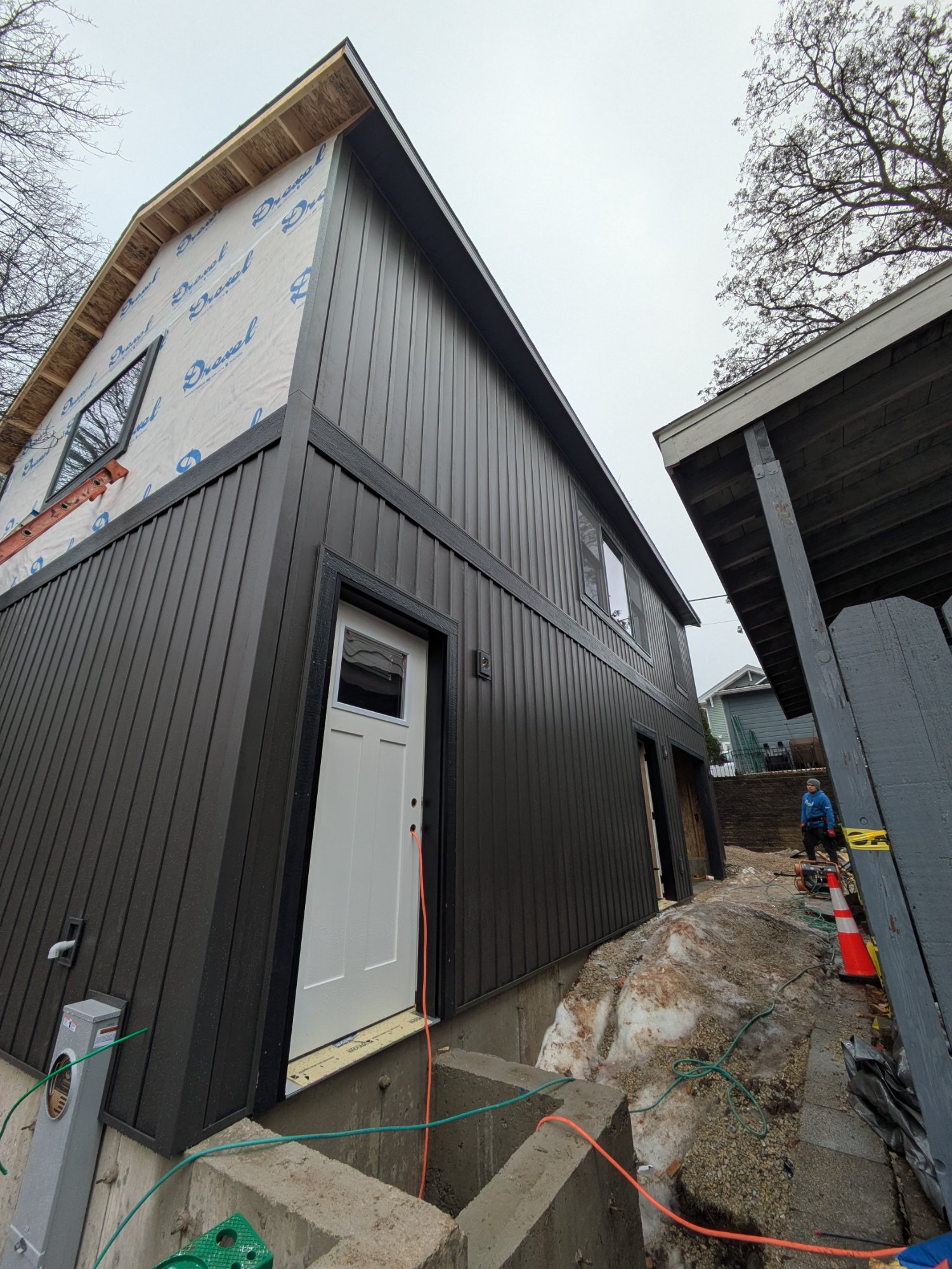

White ADU entry door installed with dark board-and-batten siding in progress on the lower level, Henry Vilas ADU, Madison WI
Tenant entry door installed during exterior siding

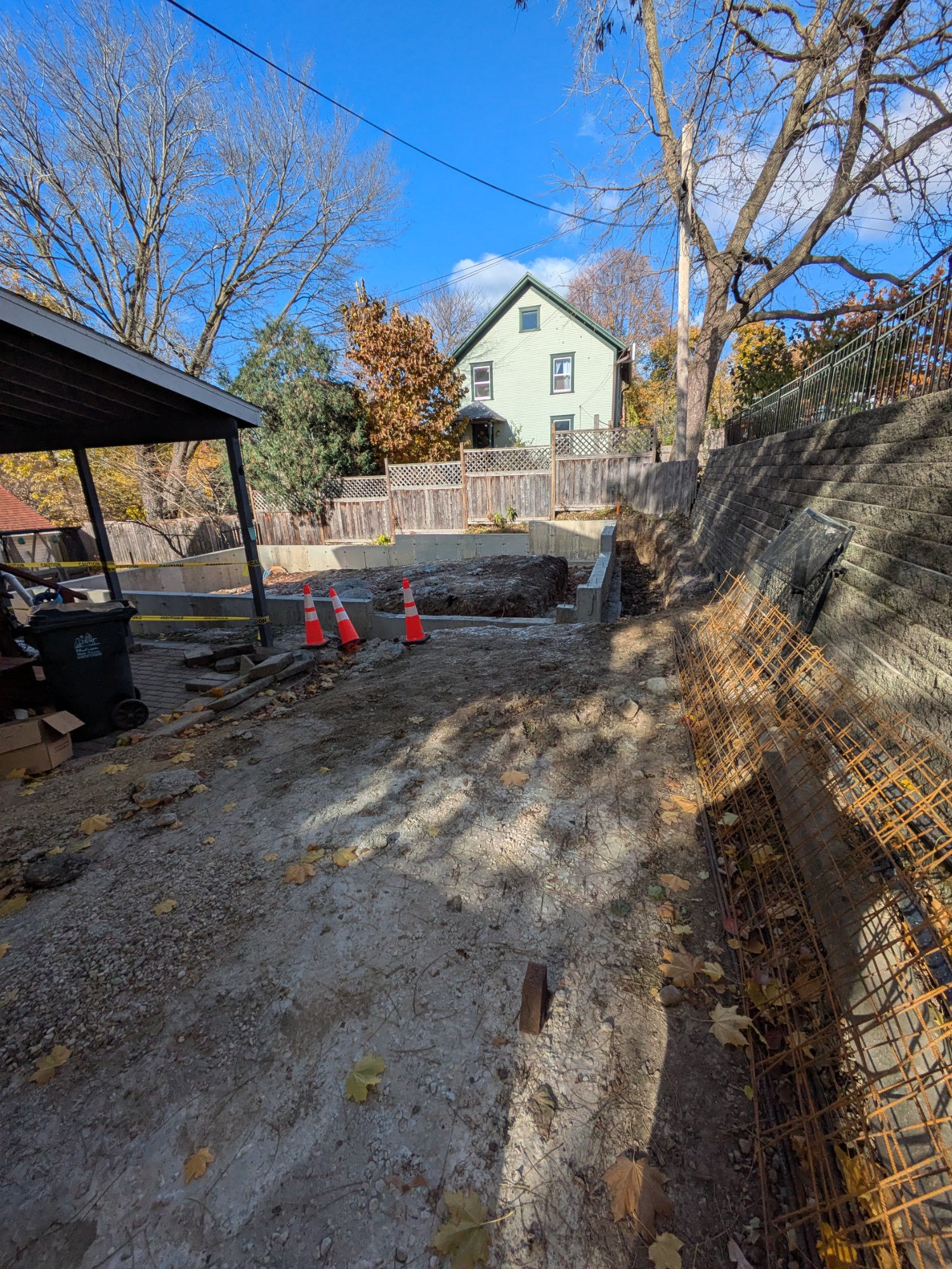

Excavated sloped site with poured foundation walls and rebar staged beside the retaining wall, Henry Vilas ADU, Madison WI
Excavation and foundation prep tucked against the existing retaining wall

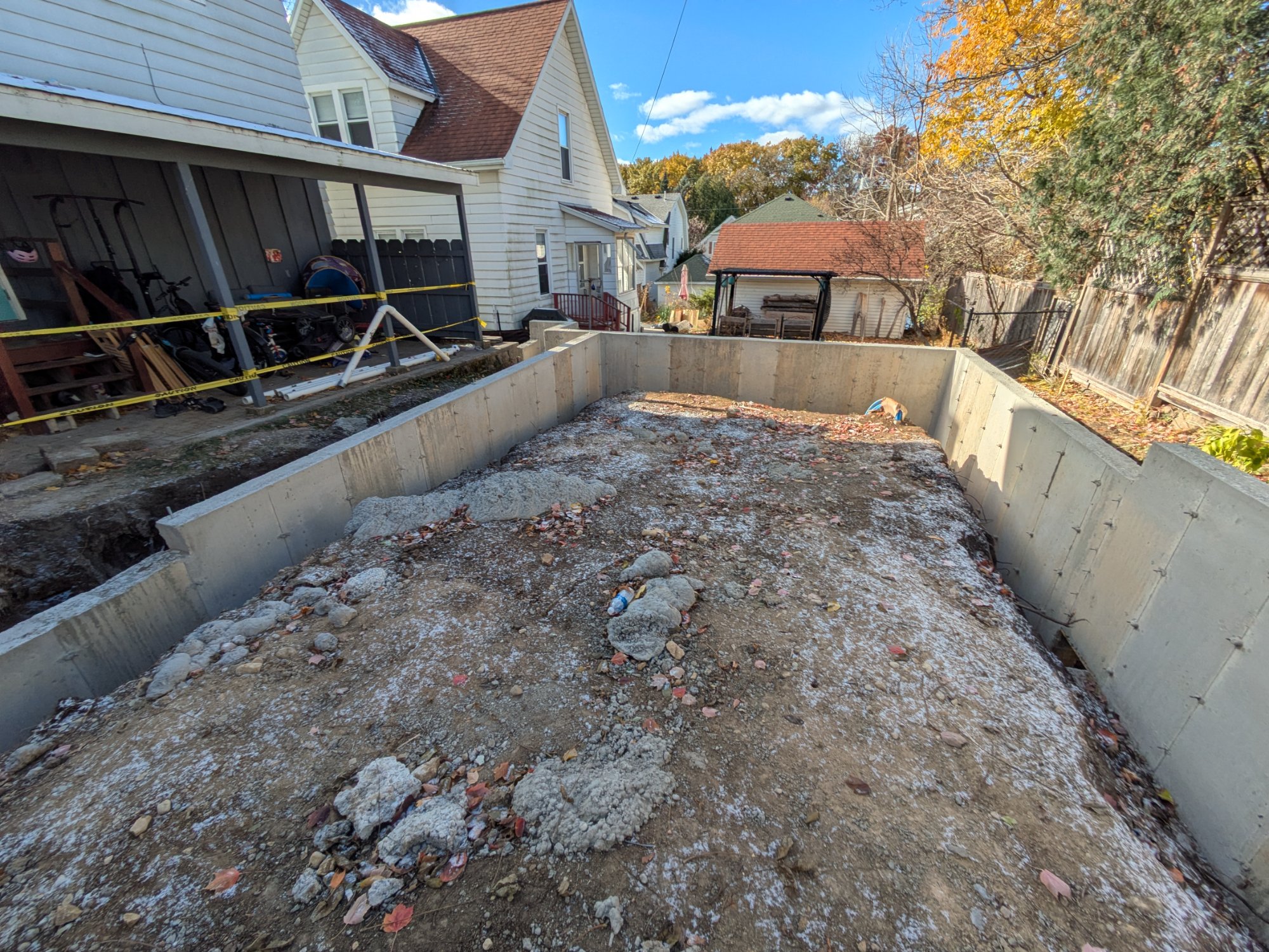

Poured concrete frost-wall foundation before the slab pour, Henry Vilas ADU, Madison WI
Frost-wall foundation poured — ready for interior fill and slab
The Site

Constrained. Not impossible.

The backyard left little room for error:

  • 46 feet wide, 24 feet deep — every inch of allowable footprint mattered
  • A 5-foot grade change across the rear yard
  • An 8-foot retaining wall running along one lot line
  • Narrow access to the build area — no easy staging or material delivery

The clients also had two driveways — one on each side of the house. The goal was to preserve both: one for the homeowners to access the garage below, one for future tenants to access the ADU above. Two households. Two independent entrances. One lot.

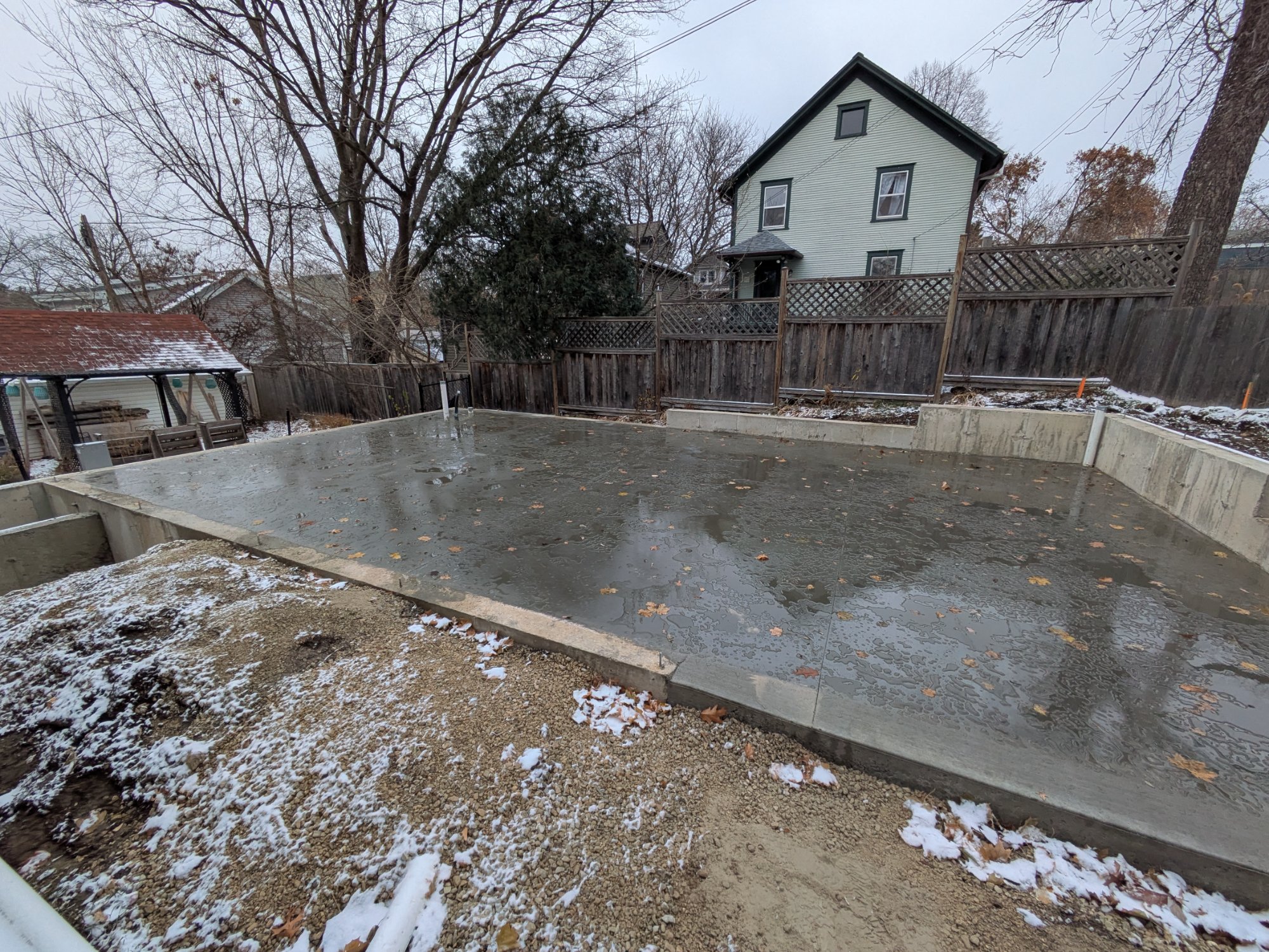

Freshly poured 46x24 concrete slab foundation with plumbing stub-ups and perimeter retaining wall, Madison WI
Slab poured — the full 46×24′ footprint with perimeter retaining wall
The Build

Maximizing the footprint. Solving the grade.

We maximized the allowable footprint — fully utilizing the 46×24′ envelope — and designed a two-story structure: attached garage on the ground level, 700 square feet of living space above.

To solve the 5-foot grade change and create a safe, independent tenant entry, we added a second retaining wall along the opposite lot line and integrated a stair system directly into it. The result: a defined, private path from the driveway to the ADU’s front door. No shared entry. No awkward access. No afterthought.

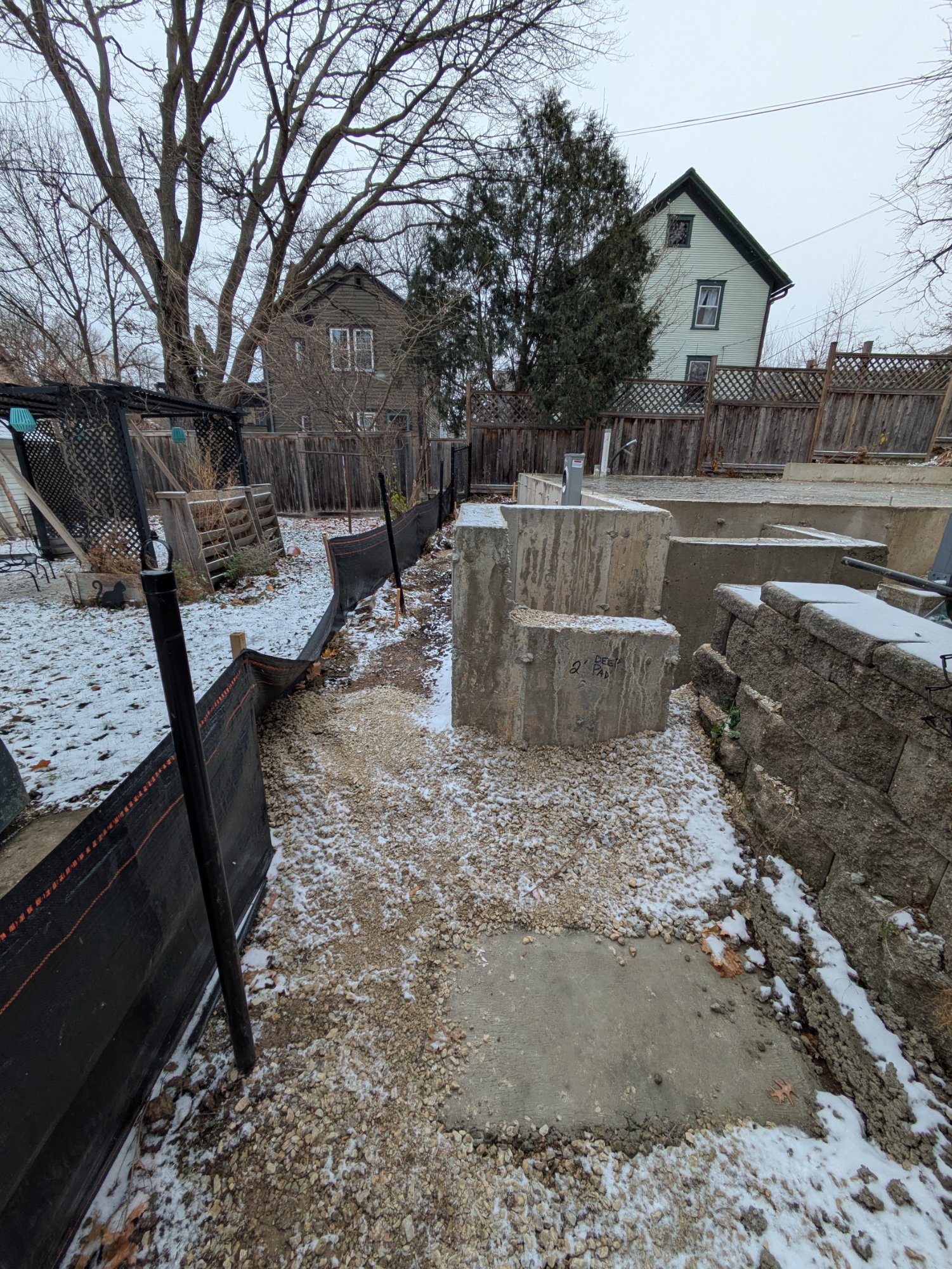

Stepped concrete foundation walls and stone block retaining wall along the sloped lot perimeter in winter, Madison WI
Stepped concrete foundation walls and retaining wall holding the 5-foot grade change

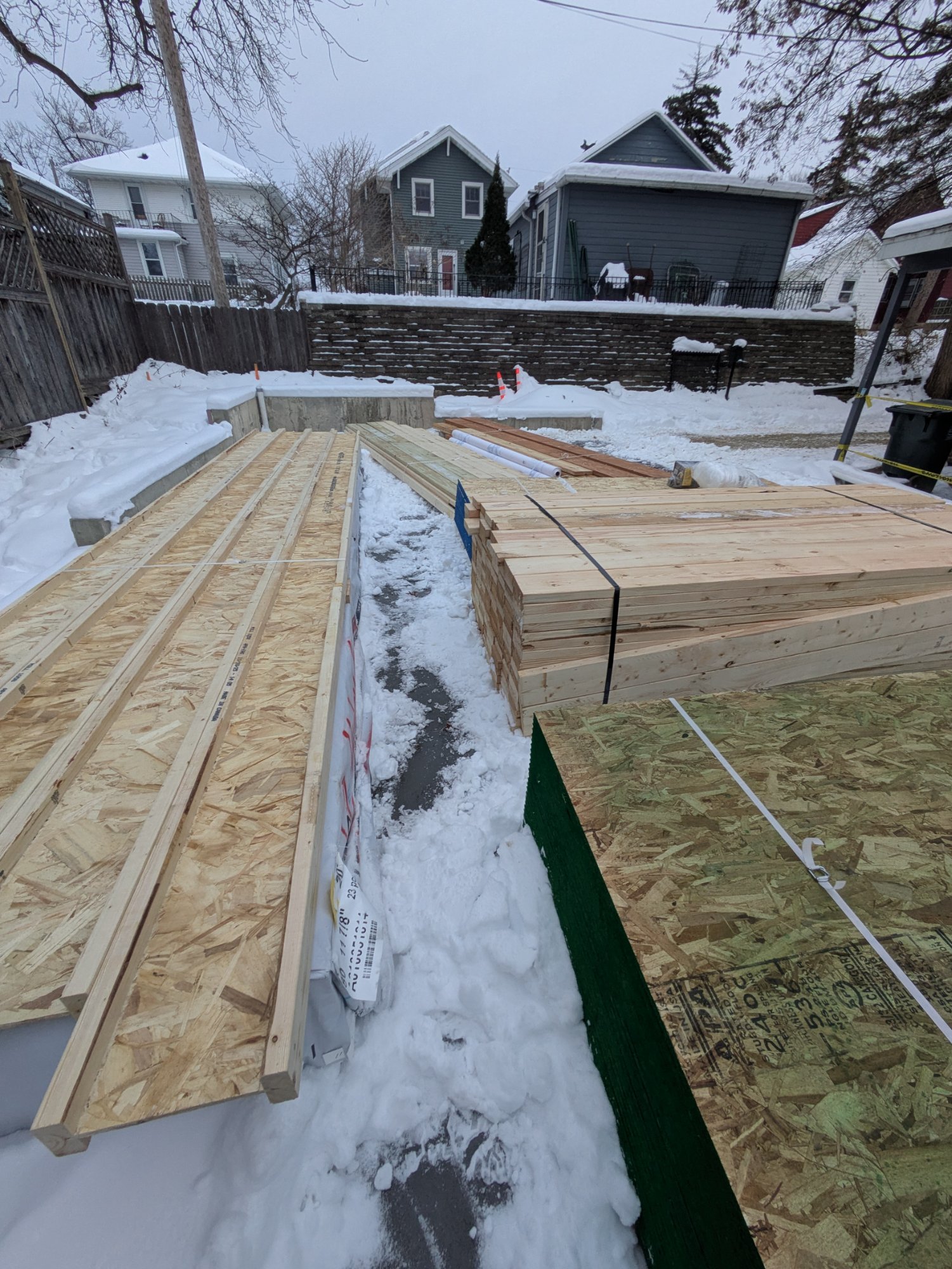

Engineered wood I-joists, dimensional framing lumber, and APA OSB sheathing staged in the snow, Henry Vilas ADU, Madison WI
Engineered floor joists, framing lumber, and OSB sheathing staged on site

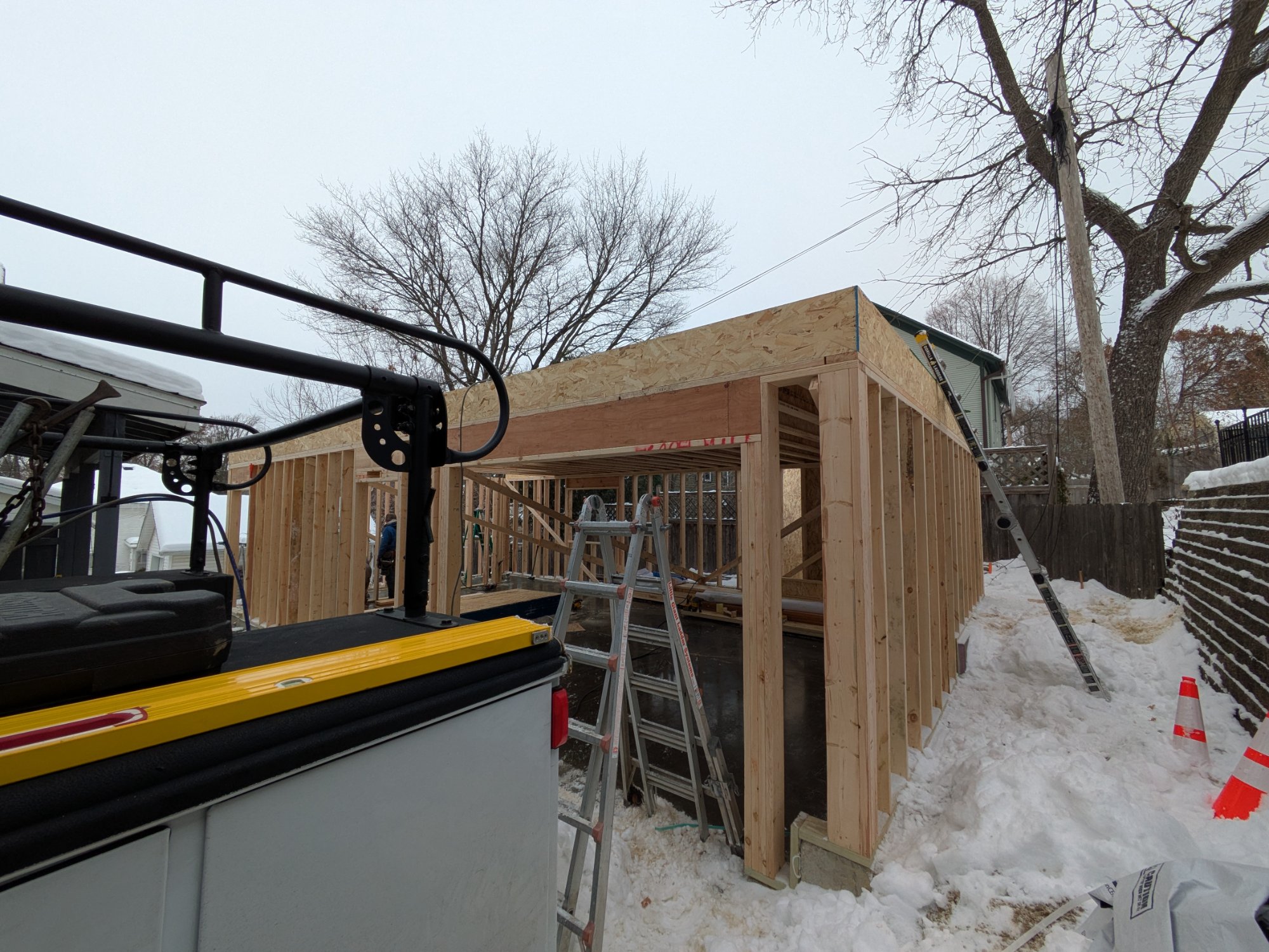

First-floor wood stud wall framing and second-story floor joists going up on the concrete slab in winter, Madison WI
First-floor stud walls and second-story floor system framed on the slab
How We Run the Job

Utility delays don’t stop a job. They redirect it.

Utility coordination introduced schedule pressure that was entirely outside our control. The local water utility needed to relocate a fire hydrant. The electric company had a service scheduling backlog of over two months before they could establish electrical service to the building.

We didn’t wait.

Every task we could advance — we advanced. Framing, insulation, interior work, systems rough-in — work continued wherever the schedule allowed. When utilities were finally coordinated and connected, we weren’t starting from where we left off. We were finishing.

Momentum isn’t something we protect only when conditions are favorable. It’s how we run the job.

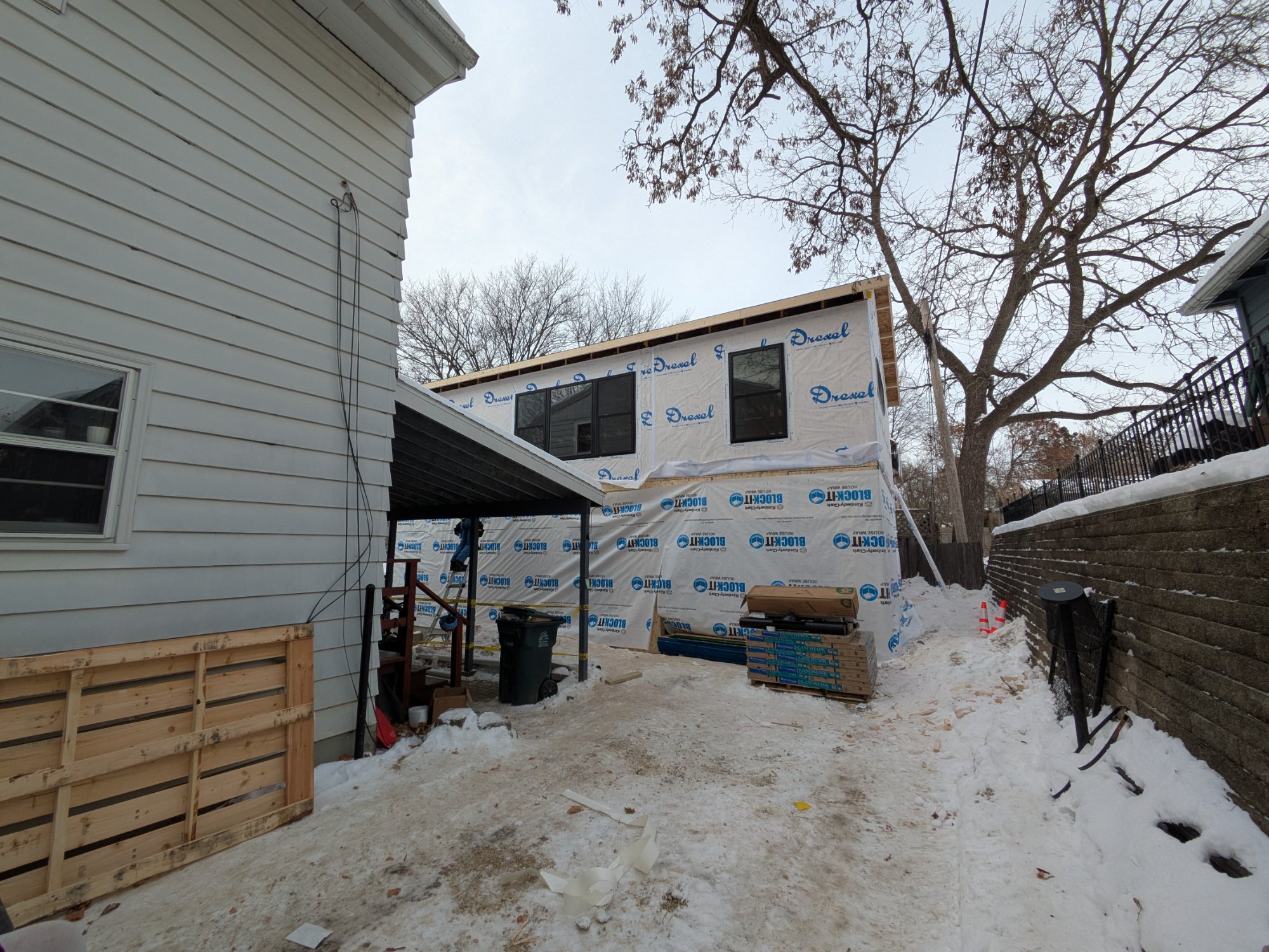

Two-story garage ADU enclosed in weather-resistant housewrap with upper windows installed, Madison WI
Structure dried in — weather barrier and upper-level windows installed

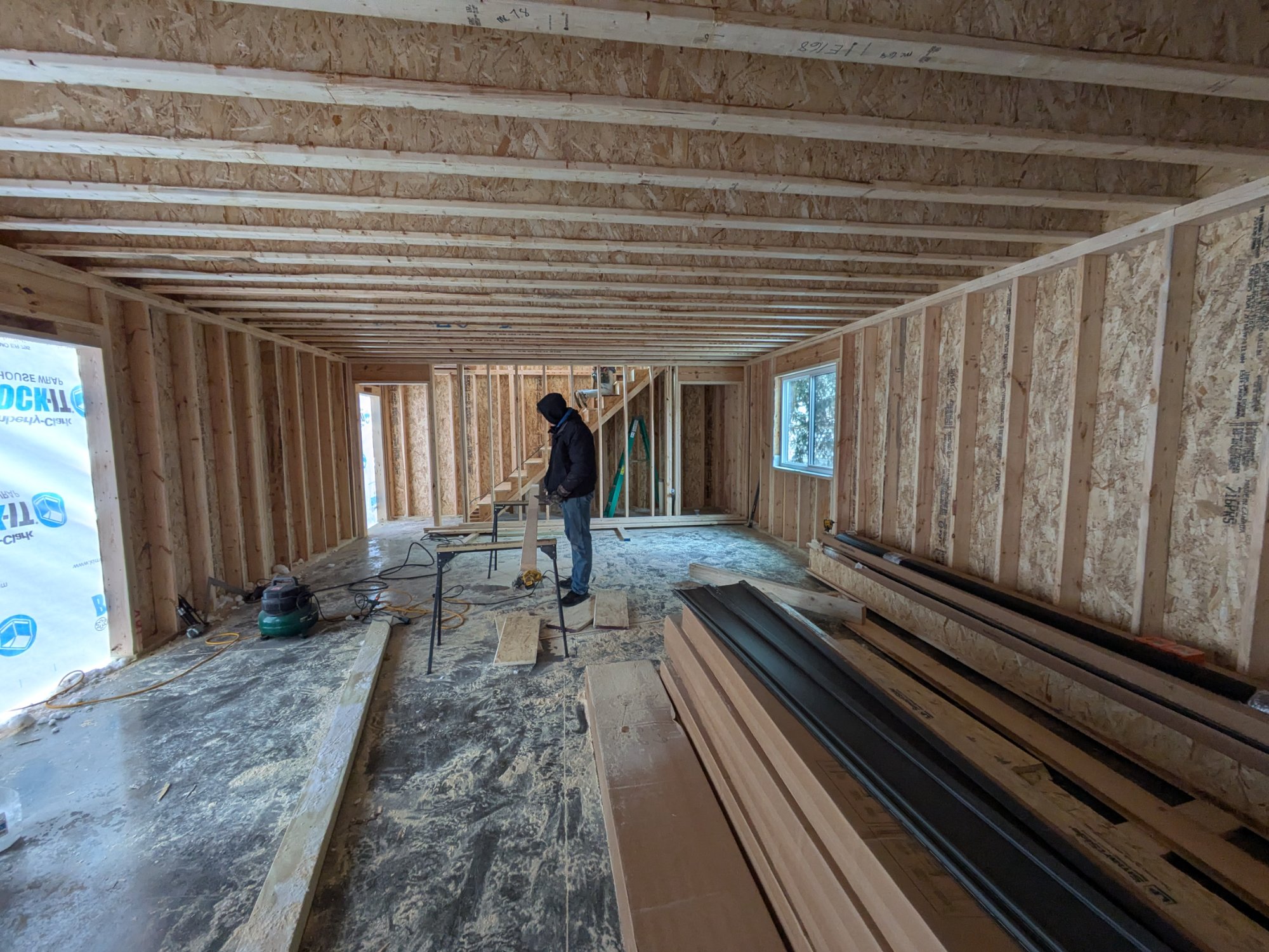

Interior garage-level wood stud framing, exposed second-floor joists, and staircase framing, Henry Vilas ADU, Madison WI
Interior rough framing — garage level with second-story floor joists and stair framing

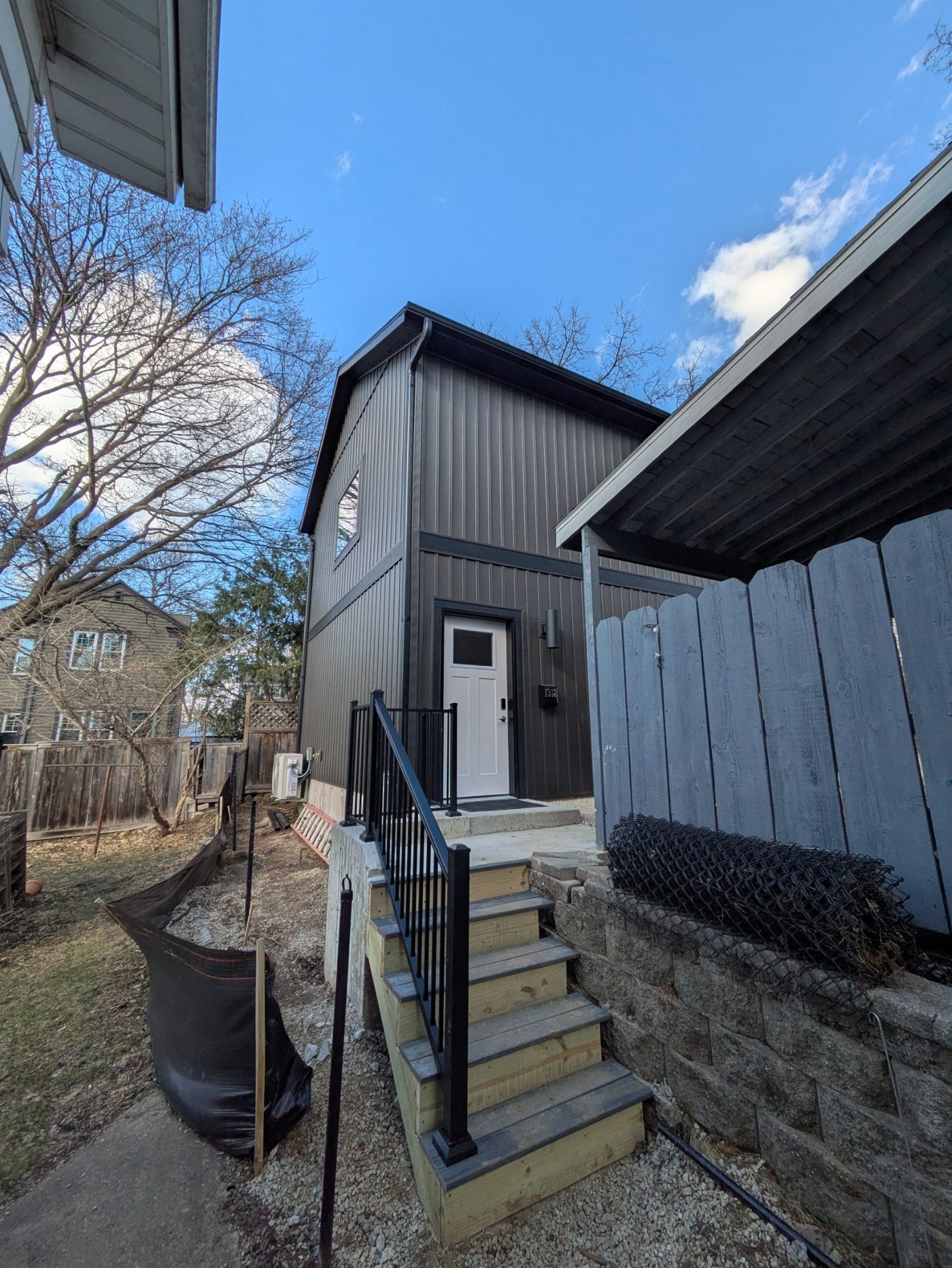

Completed private tenant entry staircase with black metal railing and white entry door with keypad lock alongside the concrete retaining wall, Madison WI
Finished tenant stair entry — black metal railing and white keypad entry door along the retaining wall

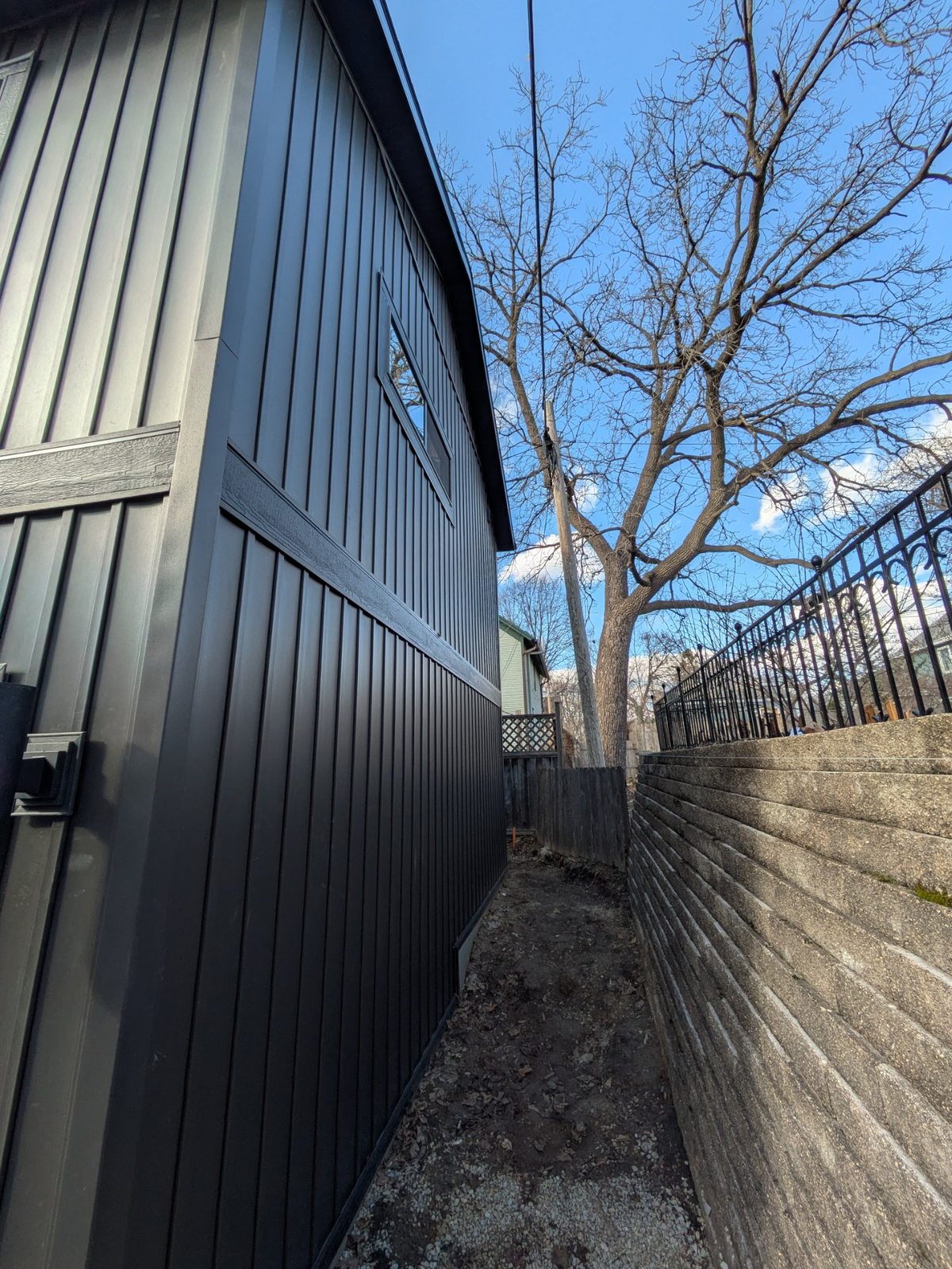

Tight side setback between the dark board-and-batten ADU exterior and the tiered concrete retaining wall, Madison WI
Tight side setback — dark board-and-batten siding within feet of the tiered retaining wall

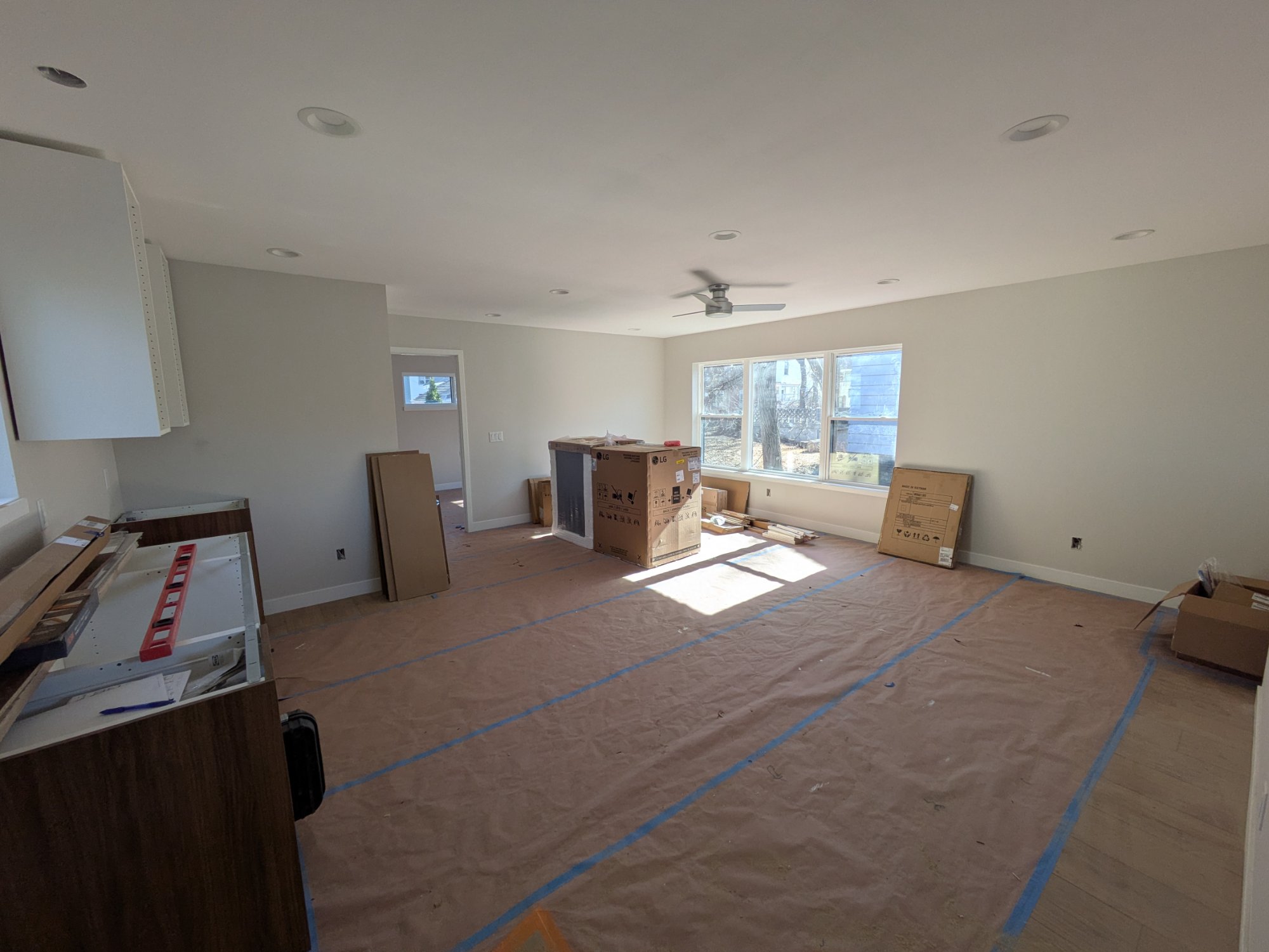

ADU interior finishing stage with painted drywall, ceiling fan, cabinetry, and boxed appliances on protected flooring, Madison WI
Interior trim-out — cabinetry going in and appliances staged on protected floors
The Finished Product

700 square feet. Fully independent. Ready in five months.

The ADU level delivers a complete, stand-alone living unit: open-plan kitchen and living area, a bedroom with walk-in closet, full bathroom, and a staircase that opens with natural light. The design makes the most of every square foot without feeling compressed.

Mini-split HVAC handles both heating and cooling efficiently — the right call for Wisconsin winters and a unit that needs to be cost-effective for tenants year-round.

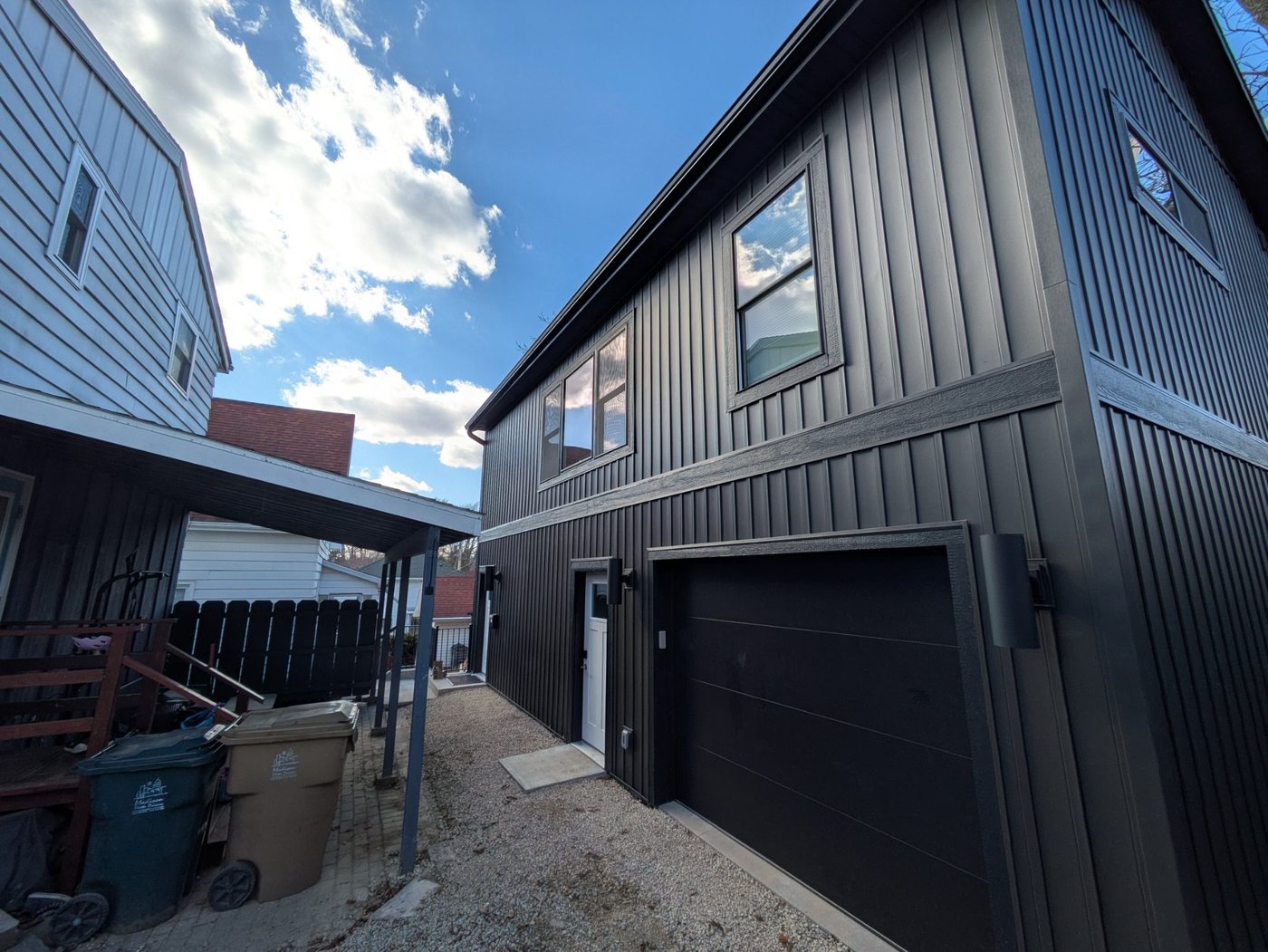

Completed ground-level exterior with matte-black garage door, white ADU entry door, exterior sconces, and dark vertical board-and-batten siding, Madison WI
Completed ground level — matte-black garage door and independent white ADU entry door
Finished ADU kitchen with warm wood cabinetry, dark quartz countertops, undermount sink, and full stainless steel appliances, Henry Vilas ADU, Madison WI
Kitchen — full appliances, dark quartz countertops, and warm wood cabinetry

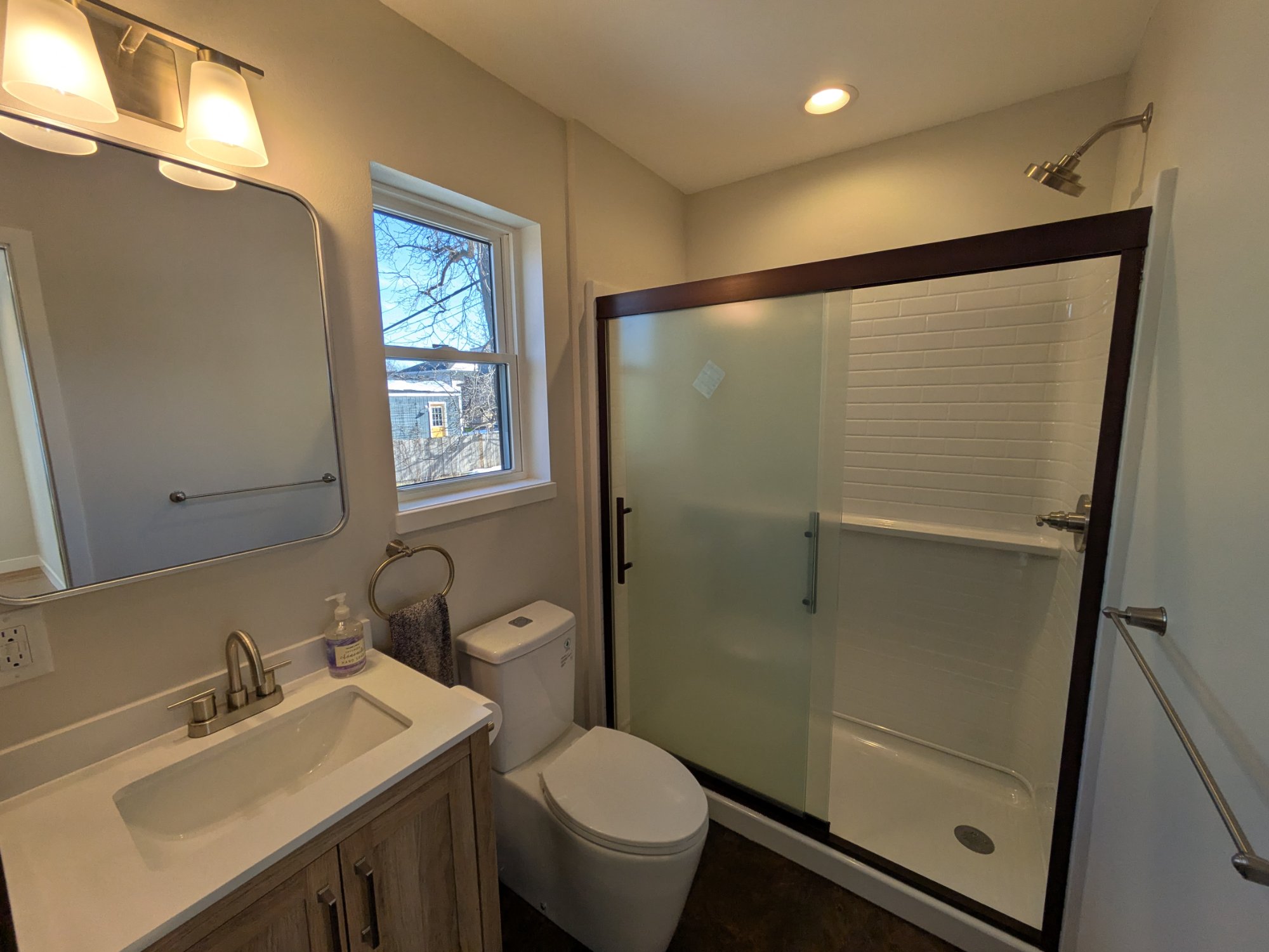

Finished ADU bathroom with wood vanity, white undermount sink, framed mirror, and walk-in subway-tile shower with glass door, Madison WI
Full bathroom — wood vanity, undermount sink, and walk-in subway-tile shower

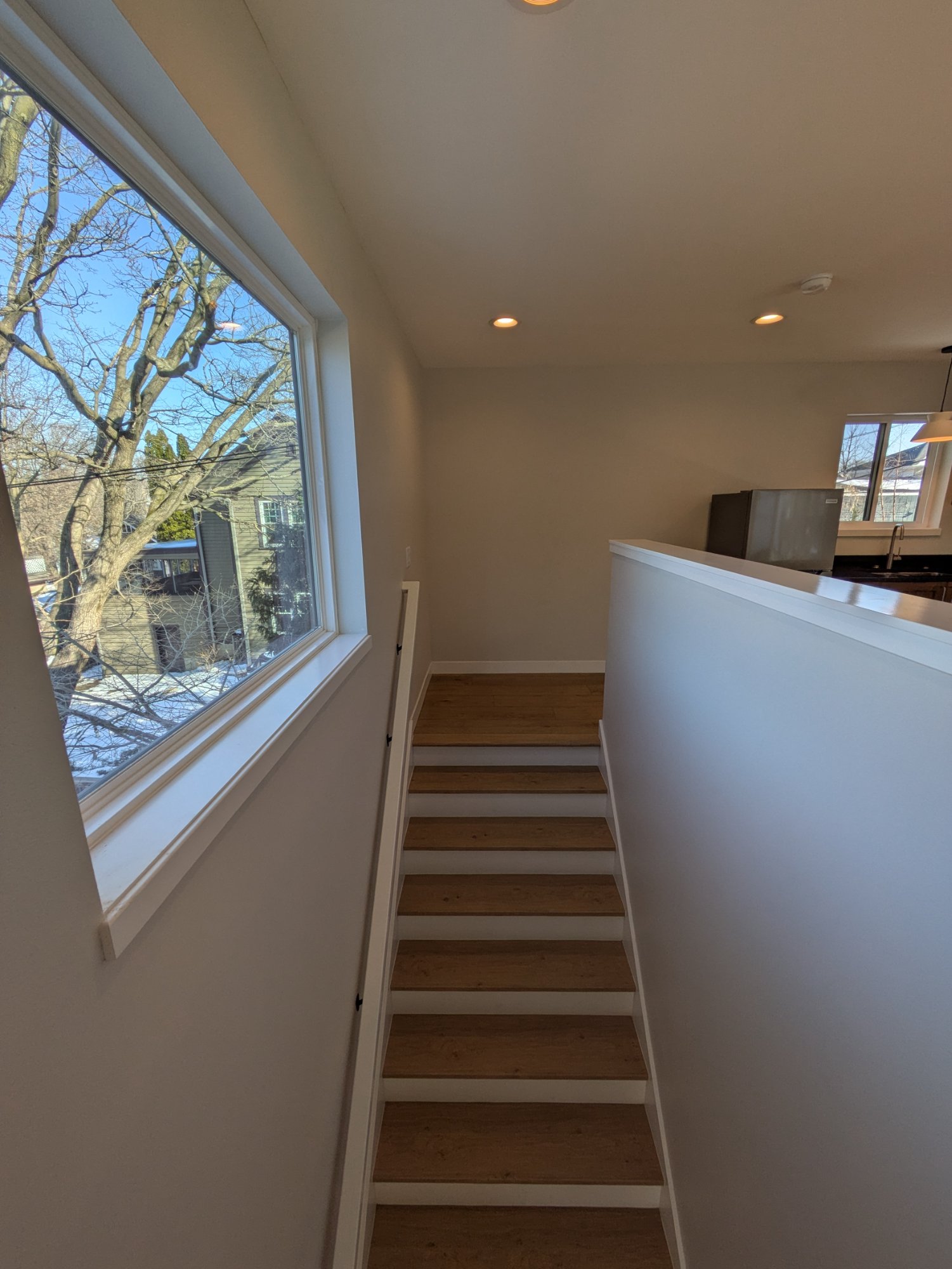

Interior staircase looking down from the upper ADU level with natural wood treads, white risers, wall handrail, and large picture window, Madison WI
Stairwell from the upper level — natural wood treads, white risers, and large picture window

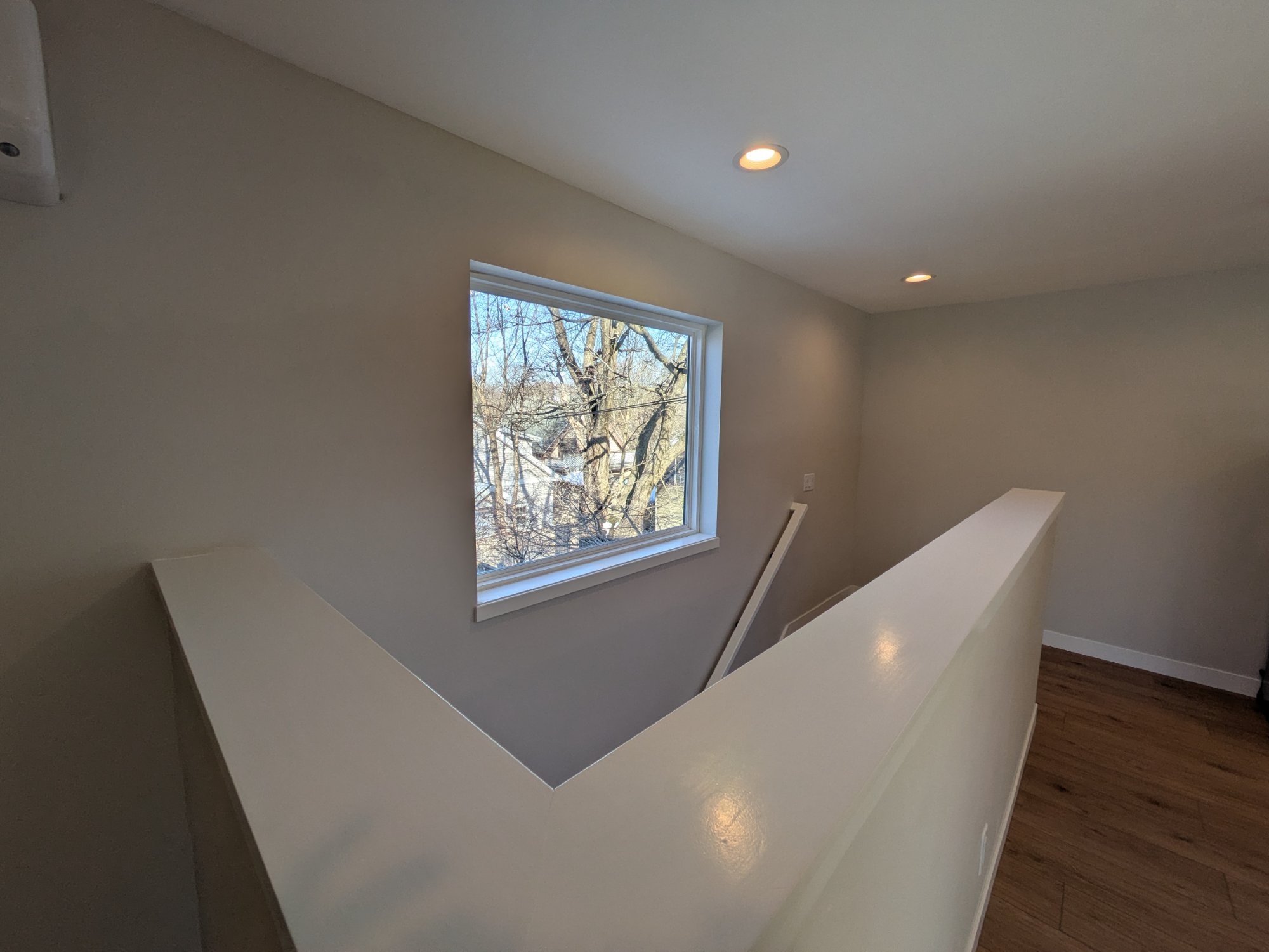

Upper-level stairwell landing with L-shaped white half-wall and large square picture window, Henry Vilas ADU, Madison WI
Upper landing — white stairwell half-wall and picture window flooding the entry with light

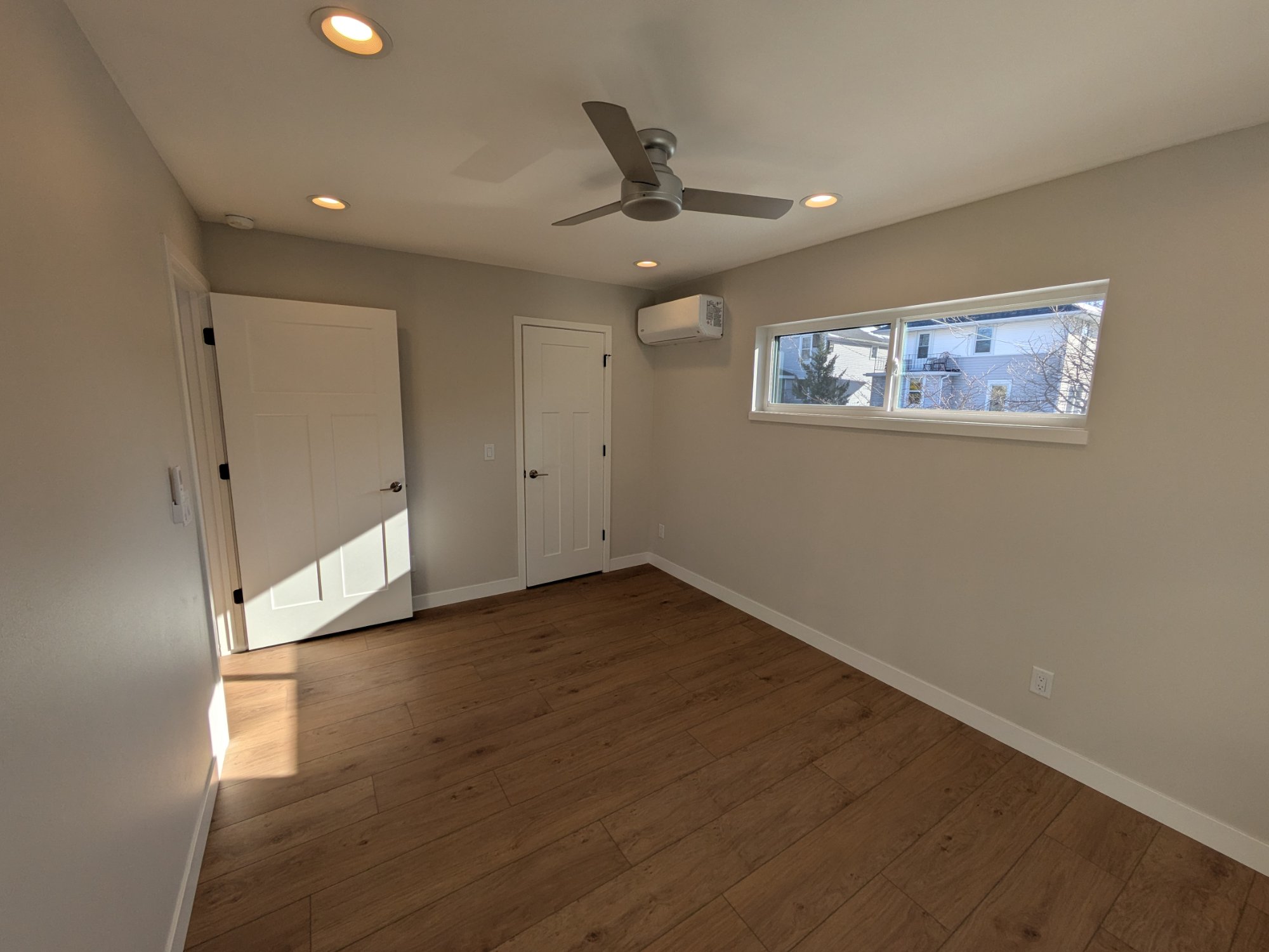

Finished ADU bedroom with wide clerestory window, ceiling fan, ductless mini-split HVAC, and two white panel doors, Madison WI
Bedroom — wide clerestory window, ceiling fan, and ductless mini-split HVAC

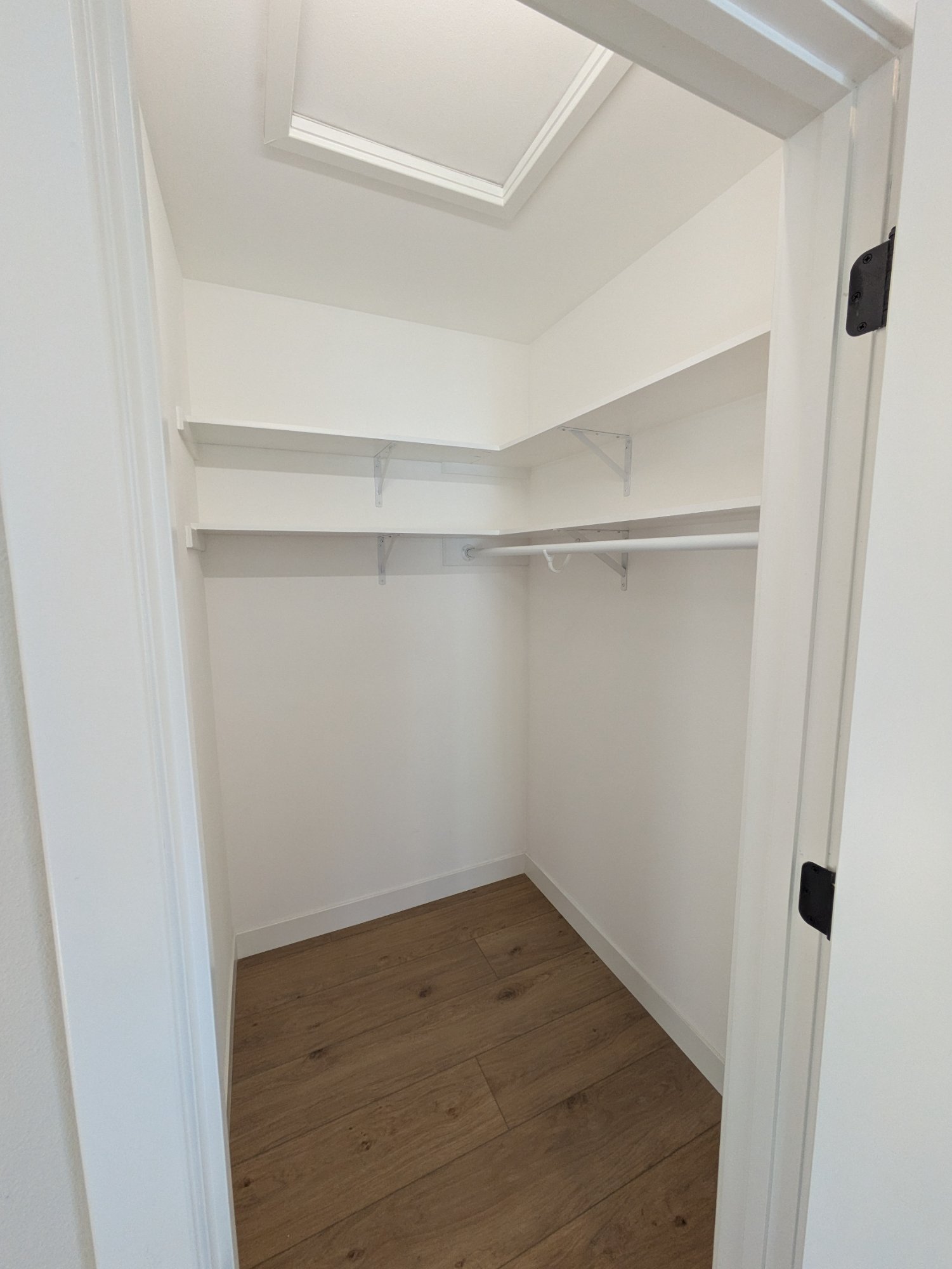

Walk-in closet with wrap-around two-tier white shelving and hanging rods, Henry Vilas ADU, Madison WI
Walk-in closet — wrap-around two-tier shelving and hanging rods

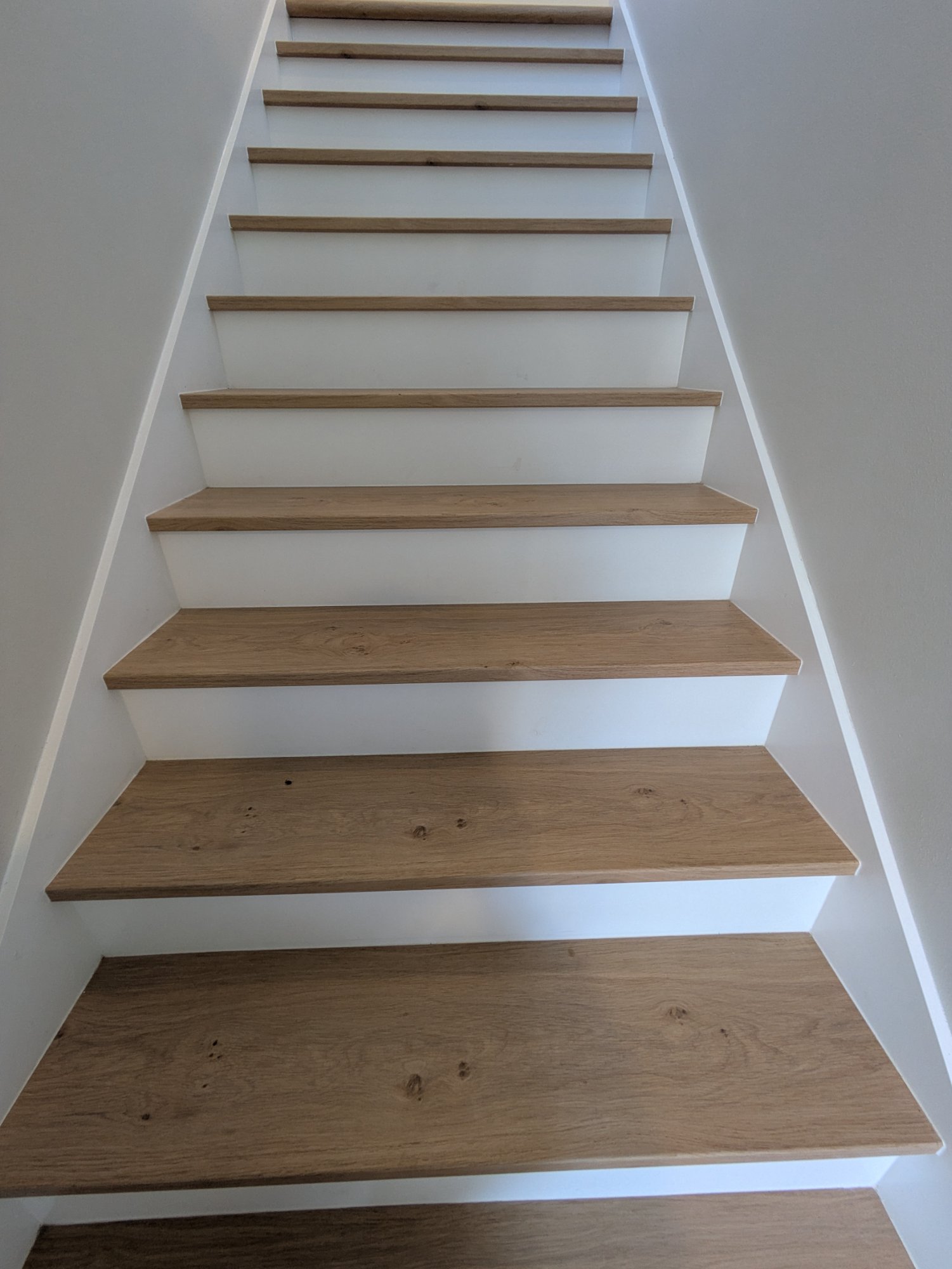

Interior stairs looking up from the ground-level entry with natural wood treads and crisp white risers, Madison WI
Entry staircase — natural wood treads and crisp white risers leading to the upper level

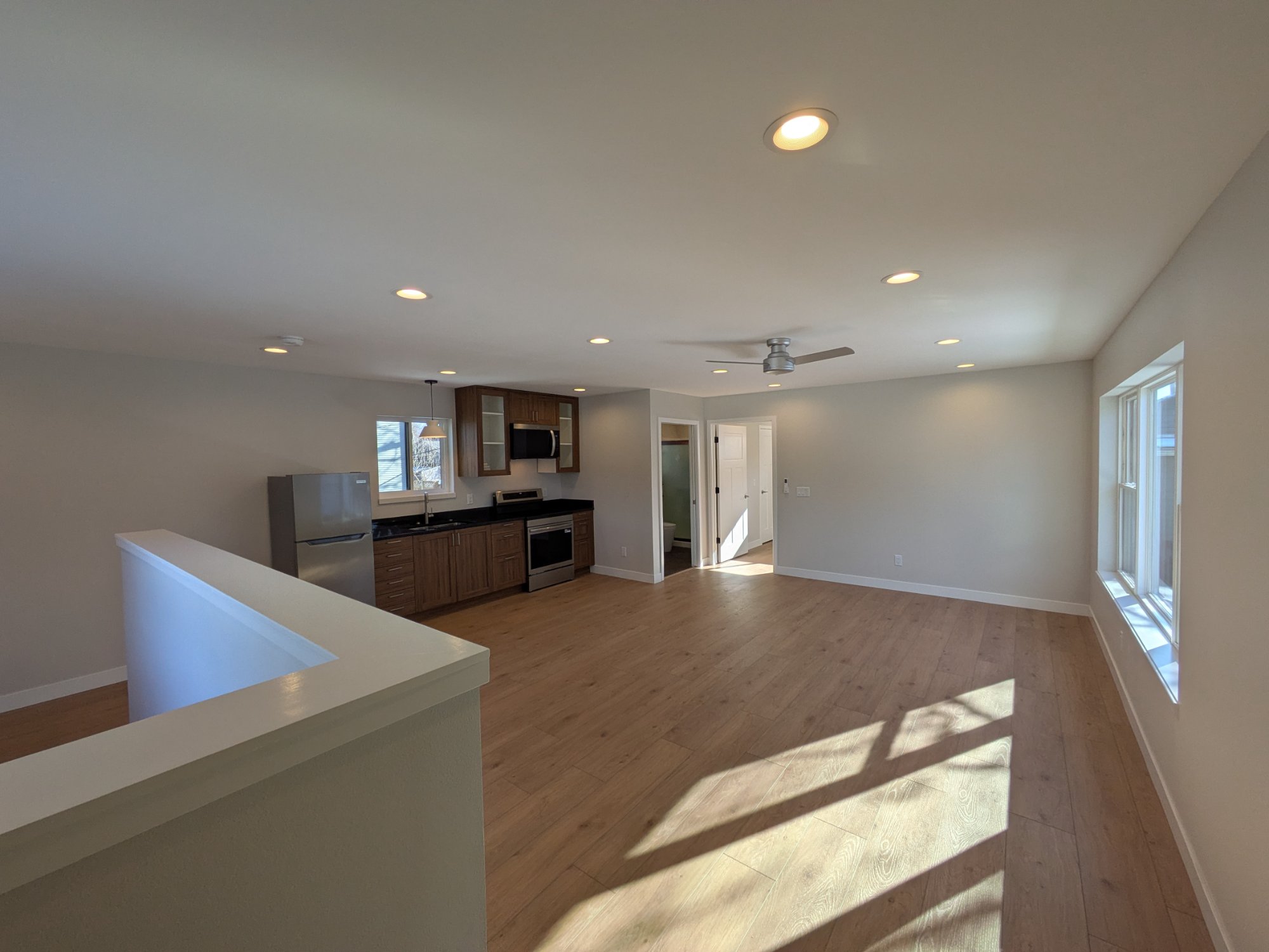

Open-concept ADU living area with wide-plank flooring, ceiling fan, and kitchen with dark quartz countertops and stainless appliances in the background, Madison WI
Open-concept living and kitchen area — wide-plank flooring, ceiling fan, and full kitchen beyond
Full Walkthrough

Video tour of the finished ADU

A walkthrough of the completed unit — from the tenant entry at the retaining wall stair through the full interior.

The Outcome

Certificate of occupancy in five months.

Construction started and reached certificate of occupancy within five months — utility delays and all.

Within the first week of receiving that certificate, the clients’ family was already in the space. Not setting it up. Not preparing. Living in it.

That’s the outcome this family had planned toward — more proximity, more flexibility, a property that works harder for them. They didn’t just get a building. They got exactly what they asked for, delivered the way it was promised, on the schedule they planned around.

5mo Start to occupancy
700 Sq ft delivered
1wk Time to move-in after CO
